GD Type


Date:2013/3/11 Editor: FRESH MARINE SUPPLY
GD Type Rubber Fenders
  • Features:
  1. The performance of reaction force and energy absorption are higher than D type.
  2. It can be installed firmly and is in long service life.
  3. It is usually suitable for the frame type harbour.

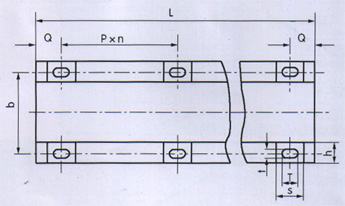

  • Specification



UNIT:mm
 型号

TYPES

H B b L Q P S h T t n
GD280Hx1000L 280 540

(600)

430

(490)

1000 150 700 165/170 120 82/90 41/45 1
GD280Hx1500L 280 540

(600)

430

(490)

1500 150 600 165/190 120 82/90 41/45 2
GD280Hx2000L 280 540 430 2000 145 570 165 120 82 41 3
GD280Hx2500L 280 540 430 2500 150 550 165 120 82 41 4
GD300Hx1000L 300 600 490 1000 150 700 165 120 90 45 1
GD300Hx1500L 300 600 490 1500 150 600 165 120 90 45 2
GD300Hx2000L 300 600 490 2000 145 570 165 120 90 45 3
GD300Hx2500L 300 600 490 2500 150 550 165 120 90 45 4

Products of other specification and sizes can be discussed with customers.


  • Performance
型号

TYPES

设计压缩变形%

Design compressive deflection

性能 Performance
反力(KN)

Reaction Force

吸能量(KJ)

Absorption Energy

性能公差%

Tolerance%

GD280Hx1000L 50 371.0 14.0 +/-10
GD280Hx1500L 557.0 21.0
GD280Hx2000L 742.0 28.0
GD280Hx2500L 927.5 35.0
GD300Hx1000L 441.0 17.6
GD300Hx1500L 661.5 26.4
GD300Hx2000L 882.0 35.2
GD300Hx2500L 1102.5 44.0

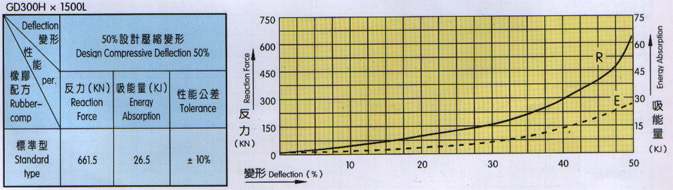

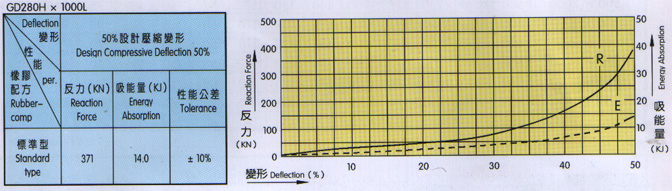

  • Performance Curve
