Semi - Circular ( Type D ) Rubber Fenders |
- With reasonable reaction it may absorb more energy than that of cylindric type.
- Convenient in mounting.
- It is usually used for dock of frame work type and shops due to the small size of its bottom width.
|
|
 |
|
UNIT:mm |
| 型号
TYPES |
规格 Specification |
备注
Remarks |

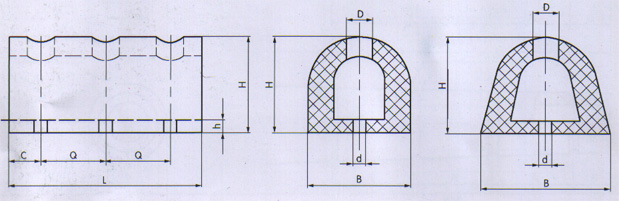

| H |
B |
L |
孔数
Holes |
Q |
C |
h |
D |
d |
| D200x200x850 |
200 |
200 |
850 |
3 |
325 |
100 |
40 |
60 |
25 |
其他非系列规
格可和用户协
商解决生产。
Fenders of other
specification
and size can be
discussed with
customers |
| D200x200x900 |
200 |
200 |
900 |
2 |
600 |
150 |
40 |
60 |
25 |
| D200x200x1000 |
200 |
200 |
1000 |
2 |
600 |
200 |
40 |
60 |
25 |
| D200x200x1500 |
200 |
200 |
1500 |
3 |
600 |
150 |
40 |
60 |
25 |
| D200x200x2000 |
200 |
200 |
2000 |
4 |
500 |
250 |
40 |
60 |
25 |
| D300x300x850 |
300 |
300 |
850 |
3 |
325 |
100 |
40 |
65 |
32 |
| D300x300x900 |
300 |
300 |
900 |
2 |
600 |
150 |
40 |
65 |
32 |
| D300x300x1000 |
300 |
300 |
1000 |
3 |
350 |
150 |
40 |
65 |
32 |
| D300x300x1500 |
300 |
300 |
1500 |
4 |
400 |
150 |
40 |
65 |
32 |
| D300x300x2000 |
300 |
300 |
2000 |
4 |
500 |
250 |
40 |
65 |
32 |
| D300x360x850 |
300 |
360 |
850 |
3 |
325 |
100 |
40 |
65 |
32 |
| D300x360x1000 |
300 |
360 |
1000 |
3 |
350 |
150 |
40 |
65 |
32 |
| D300x360x1500 |
300 |
360 |
1500 |
4 |
400 |
150 |
40 |
65 |
32 |
| D400x400x850 |
400 |
400 |
850 |
3 |
325 |
100 |
55 |
65 |
32 |
| D400x400x1000 |
400 |
400 |
1000 |
3 |
350 |
150 |
55 |
65 |
32 |
| D400x400x1500 |
400 |
400 |
1500 |
3 |
600 |
150 |
55 |
65 |
32 |
| D400x400x1500 |
400 |
400 |
1500 |
4 |
400 |
150 |
55 |
65 |
32 |
| D500x500x850 |
500 |
500 |
850 |
3 |
325 |
100 |
90 |
97 |
45 |
| D500x500x1000 |
500 |
500 |
1000 |
3 |
350 |
150 |
90 |
97 |
45 |
| D500x500x1500 |
500 |
500 |
1500 |
3 |
600 |
150 |
90 |
97 |
45 |
| D500x500x1500 |
500 |
500 |
1500 |
4 |
400 |
150 |
90 |
97 |
45 | |
|
| 型号
Types |
性能 Performance |
| 设计压缩变形%
Design compressive Deflection % |
反力(KN)
Reaction Force
(KN) |
吸能量（KJ）
Energy Absorption
(KJ) |
性能公差（%）
Tolerance(%) |
| D200x200x850 |
50 |
176.2 |
7.1 |
+/-10 |
| D200x200x900 |
186.6 |
7.6 |
| 7.6D200x200x1000 |
207.3 |
8.4 |
| D200x200x1500 |
310.9 |
12.6 |
| D200x200x2000 |
414.5 |
6.8 |
| D300x300x850 |
255.0 |
10.0 |
| D300x300x900 |
270.0 |
10.6 |
| D300x300x1000 |
294.3 |
11.8 |

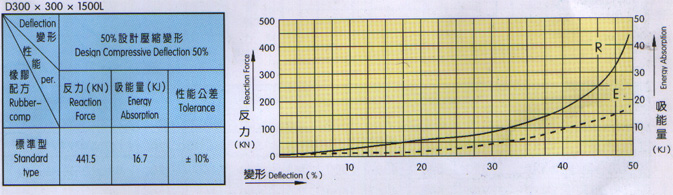

| D300x300x1500 |
441.5 |
16.7 |
| D300x300x2000 |
588.6 |
23.6 |
| D300x360x850 |
280.5 |
11.5 |
| D300x360x1000 |
323.7 |
13.1 |
| D300x360x1500 |
480.7 |
19.6 |
| D400x400x850 |
325.2 |
16.7 |
| D400x400x1000 |
382.6 |
19.6 |
| D400x400x1500 |
573.9 |
29.4 |
| D500x500x850 |
383.6 |
26.7 |
| D500x500x1000 |
451.3 |
31.4 |

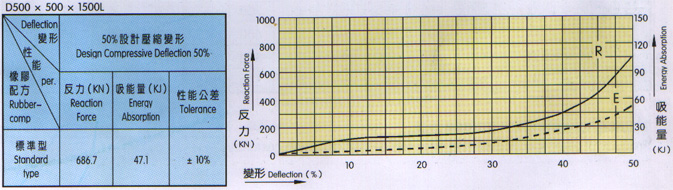

| D500x500x1500 |
686.7 |
47.1 |
| D500x500x2000 |
902.6 |
62.8 | |
 |
| |
 |
| |
 | |
|
|
|
|
Semi - Circular
