Cylindrical Type (Type CY) Current position:Home > Product > Cylindrical Type (Type CY)

Cylindrical Type (Type CY)


Date:2013/3/11 Editor: FRESH MARINE SUPPLY
Cylindrical Type (Type CY) Rubber Fenders
  • Features:
  1. Low reaction force, less surface pressure, reasonable energy absorption.
  2. The simple figure is easy to be installed and maintained.
  3. Little influence by shipping and dock, use is widely.
  4. Good adaptability for fransversal and longitudinal shape during berthing.
  5. It can be used widely as the hanged. Equipment of defending Dash for all kind of the shipping and dock.

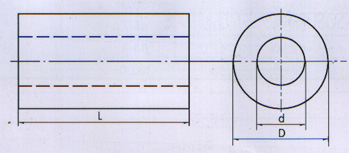

UNIT:mm
 型号

TYPES

外径

QUTER DIA(D)

内径

INNER DIA(d)

制品长度

length of prouduct

CY150xL 150 75 500-18000
CY200xL 200 100
CY250xL 250 125
CY300xL 300 150
CY400xL 400 200
CY500xL 500 250
CY600xL 600 300
CY700xL 700 350
CY800xL 800 400
CY900xL 900 450
CY1000xL 1000 500

Products of other sizes can be manufactured at user’s request.


  • Performance
 型号

TYPES

设计压缩变形(%)

Design compressive deflection(%)

性能 Performance
反力(KN)Reaction Force 吸能量(KJ)Absorption Energy 性能公差%

Tolerance%

标准型

Standard Type

高反力型

High Reaction Type

标准型

Standard Type

高反力型

High Reaction Type

CY150x1000 50 44.1 72.6 1.5 2.26 +/-10
CY200x1000 59.8 95.1 2.6 4.2
CY250x1000 74.6 120.0 4.1 6.5
CY300x1000 89.3 143.2 5.9 9.4
CY400x1000 118.7 191.0 10.4 16.6
CY500x1000 148.1 239.0 16.1 26.2
CY600x1000 178.5 286.0 23.5 37.3
CY700x1000 208.0 334.0 31.4 50.0
CY800x1000 237.4 382.5 41.2 65.7
CY900x1000 267.8 430.0 52.0 84.3
CY1000x1000 297.2 479.0 63.8 103.0

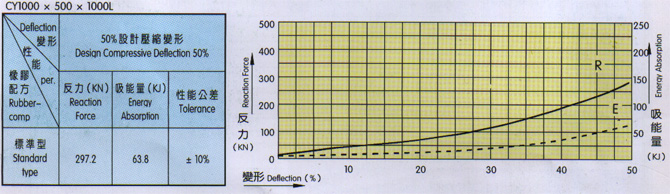

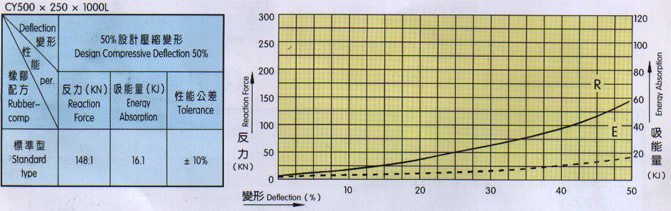

  • Performance Curve
