U Type Current position:Home > Product > U Type

U Type


Date:2013/3/11 Editor: FRESH MARINE SUPPLY
U Type Rubber Fenders

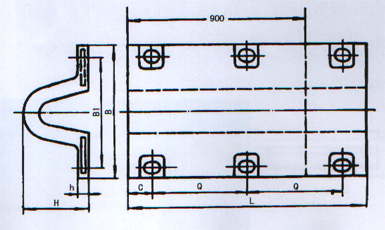

  • Structure

  • Specification
 TYPE H h B B1 C Q e f d g
U300Hx1500L 300 35 540 430 150 600 60 90 32 80
U300Hx900L

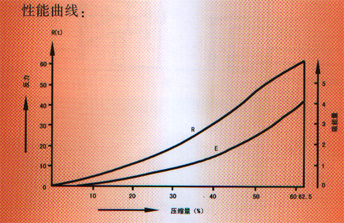

  • Performance
 Reaction Force   Unit Test Data
Compressive Deflection 50.0% Tons/M 33
Compressive Deflection 62.5% Tons/M 40
Absorption Energy   Tons/M
Compressive Deflection 50.0% Tons/M 1.6
Compressive Deflection 62.5% Tons/M 2.9

  • Setup

Metal Accessories and DA - A300H’Accessories can be used all.
