V Type


Date:2013/3/11 Editor: FRESH MARINE SUPPLY
V型 Rubber Fenders
  • Features:
  1. High energy absorption and low reaction force.
  2. It can be installed firmly and replaced easily.
  3. Using in medium port.

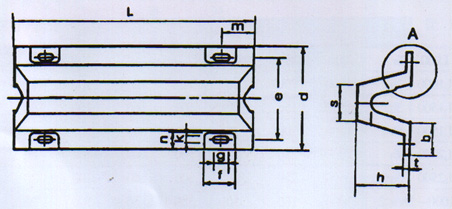

  • Structure

  • Specification
 TYPE h s t b m d e f g n k L
VH500 500 328 75 320 160 1000 840 180 94 140 49 1000-2500
VH600 600 393 90 384 170 1200 1010 195 104 180 52 1000-2000
VH800 800 524 120 501 180 1600 1340 270 136 260 68 1000-2000

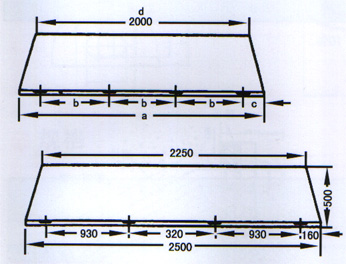

TYPE a(mm) b(mm) c(mm) d(mm)
VH500 1250 930 160 1000
VH600 1300 960 170 1000
VH800 1400 1040 180 1000

TYPE a(mm) b(mm) c(mm) d(mm)
VH500 1750 715 160 1500
VH600 1800 730 170 1500
VH800 1900 770 180 1500

TYPE a(mm) b(mm) c(mm) d(mm)
VH500 2250 645 157.5 2000
VH600 2300 655 167.5 2000
VH800 2400 680 180 2000

  • Performance
 TYPE F1

(High Reaction Force)

F2

(Standard Type)

F3

(Low Reaction Force1)

F4

(Low Reaction Force2)

Reaction Force(t) Absorption   Energy(t-m) Reaction Force(t) Absorption Energy(t-m) Reaction Force(t) Absorption Energy(t-m) Reaction Force(t) Absorption Energy(t-m)
VH500xL1000 45.0 7.5 37.5 6.3 30.0 5.0 22.5 3.8
VH500xL1500 67.5 11.3 56.3 9.4 45.0 7.5 33.8 5.6
VH500xL2000 90.0 15.0 75.0 12.5 60.0 10.0 45.0 7.5
VH500xL2500 102.5 16.8 90.5 14.6 70.5 10.8 55.5 8.4
VH600xL1000 54.0 10.8 45.0 9.0 36 7.2 27.0 5.4
VH600xL1500 81.0 16.2 67.5 13.5 54 10.8 40.5 8.1
VH600xL2000 108.0 21.6 90.0 18.5 72 14.4 54.0 10.8
Note:1、The value in this form when the deflection is 45%; 2、Tolerance +/-10%。



VH800
Specification/Length(mm) F1

(High Reaction Force)

F2

(Standard Type)

F3

(Low Reaction Force1)

F4

(Low Reaction Force2)

Reaction Force(t) Absorption   Energy(t-m) Reaction Force(t) Absorption   Energy(t-m) Reaction Force(t) Absorption   Energy(t-m) Reaction Force(t) Absorption   Energy(t-m)
1.0 72 19.2 60 16.0 48 12.8 36 9.6
1.5 108 28.8 90 24 72 19.2 54 14.4
2.0 144 38.4 120 32.0 96 25.6 72 19.2
Note:1、The value in this form when the deflection is 45%; 2、Tolerance +/-10%。




  • Setup

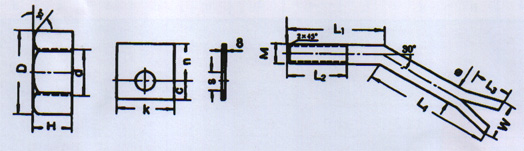

Setup Accessory
 NO Name Material Quantity Weight Note
1 Nut 1Cr13 8pcs 10.28 Stainless steel
2 Board A3 4pcs 3.3 Galvanization
3 Bolt 1Cr13 4pcs 30.68 Stainless steel




TYPE D d H K n c s M L1 L2 L3 L4 Ø W
VH500 80.8 45 35 140 75 45 47 45 210 150 100 330 45 90
VH600 86.5 48 38 150 90 50 50 48 210 150 100 330 48 90
VH800 89.0 50 40 230 125 100 55 50 210 150 100 330 50 90
