D Type Rubber Fenders
  • Features:
  1. High energy absorption and low reaction force.
  2. It can be installed firmly and replaced easily.
  3. Width of bottom is very small,specially using in framing port.

  • Specification

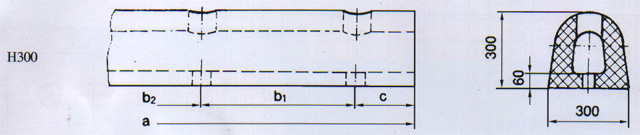

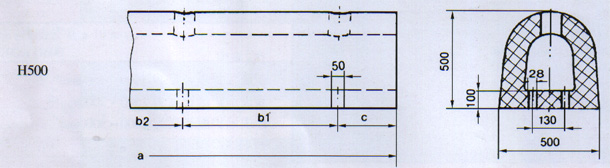

TYPE a b1 b2 c Setup quantity of hole  Reference Weight(kg)
H200xL1000-2h 1000 600 \ 200 2 36
H200xL2000-4h 2000 500 500 250 4 72
H300xL900 -2h 900 600 \ 150 2 60
H300xL1000-2h 1000 600 \ 200 2 67
H300xL1500-3h 1500 600 600 150 3 100
H300xL1200-4h 2000 500 500 250 4 134
H400xL1500-4h 1500 400 400 150 4 142
H400xH2000-5h 2000 400 400 200 5 188
H500xL1000-3hx2 1000 350 350 150 3x2 195
H500xL1500-4hx2 1500 400 400 150 4x2 292
H500xL2000-5hx2 2000 400 400 200 5x2 390

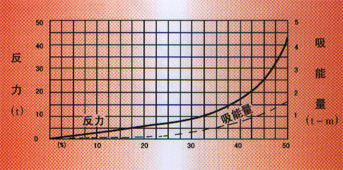

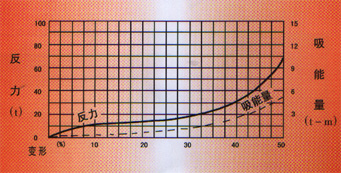

  • Performance
D300 * 1500
D500 * 1500



TYPE Design Compressive Deflection(%) Specification
Reaction Force(t) Absorption Energy(t-m) Tolerance(%)
H200xL1000 50 8 0.25

 +-10

H200xL2000 16 0.5
H300xL900 27 1
H300xL1000 30 1.2
H300xL1500 45 1.7
H300xL2000 60 2.4
H400xL1500 5835 3
H400xL2000 78 4
H500xL1000 46 3.2
H500xL1500 70 4.8
H500xL2000 92 6.4

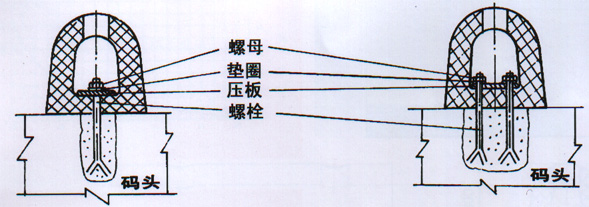

  • Setup



1、Strengthen Accessory’s Material And Demend

 NO Name Material Deal with surface
1 board A3 Galvanization
2 Nut 1Cr13 ————
3 Piece 1Cr13 ————
4 Bolt 1Cr13 ————

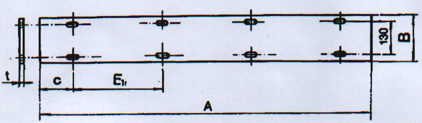

2、Board

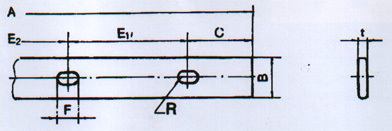

3、Strengthen Accessory Type

 Fender Type Board Piece
A C E1 E2 F B t s N M
H300xL900-2h 900 150 600   60 100 20 5 31 55
H300xL1000-2h 1000 200 600   60 100 20 5 31 55
H300xL1500-3h 1500 150 600 600 60 100 20 5 31 55
H300xL1500-5h 1500 100 325 325 60 100 20 5 31 55
H300xL2000-4h 2000 250 500 500 60 100 20 5 31 55
H300xL2500-5h 2500 250 500 500 60 100 20 5 31 55
H500xL1000-3hx2 1000 150 350 350 50 180 20 5 27 50
H500xL1500-4hx2 1500 150 400 400 50 180 20 5 27 50
H500xL2000-5hx2 2000 200 400 400 50 180 20 5 27 50

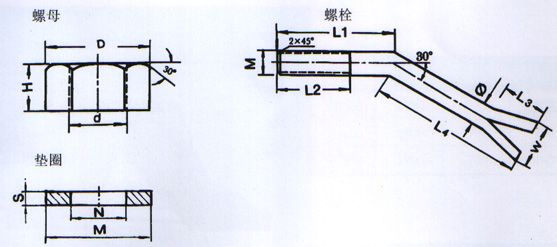

 Fender Type Bolt Nut
M L1 L2 L3 L4  Ø W H d D
H300xL900-2h 27 170 100 100 330 27 90 22 27 41
H300xL1000-2h 27 170 100 100 330 27 90 22 27 41
H300xL1500-3h 27 170 100 100 330 27 90 22 27 41
H300xL1500-5h 27 170 100 100 330 27 90 22 27 41
H300xL2000-4h 27 170 100 100 330 27 90 22 27 41
H300xL2000-4h 27 170 100 100 330 27 90 22 27 41
H300xL2500-5h 27 170 100 100 330 27 90 22 27 41
H500xL1000-3hx2 24 180 130 60 386 24 60 19 24 36
H500xL1500-4hx2 24 180 130 60 386 24 60 19 24 36
H500xL2000-5hx2 24 180 130 60 386 24 60 19 24 36
