SUC Super Drum Type Current position:Home > Product > SUC Super Drum Type

SUC Super Drum Type


Date:2013/3/11 Editor: FRESH MARINE SUPPLY
SUC Super Drum Rubber Fenders
  • Features:

Good adaptability for fransversal and longitudinal shape during berthing,High energy absorption and low reaction force,Reasonable structure and prolonged useful life.

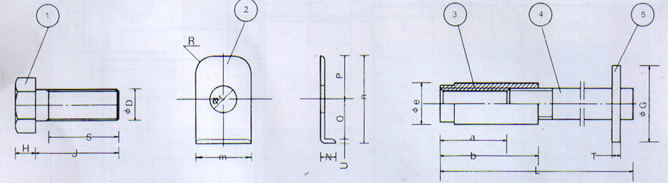

  • Metal Accessory:
 NO Name Material Quantity
1 Bolt  1Cr13or2Cr13 1
2 Piece A3or25(galvanization) 1
3 Beforehand nut 1Cr13or2Cr13 1
4 地角杆 A3or25 1
5 地角板 A3or25 1





TYPE D H J S a b e T m N n P Q U V R L G
SUC630H M30 19 75 60 75 105 38 9 65 19.5 109.5 33 72 45 34 15 330 75
SUC100H M39 26 95 75 85 125 50 9 80 26 148 40 102 6 43 25 43 85
SUC1150H M42 26 100 80 85 125 55 12 85 28 151 43 102 6 46 25 500 90
SUC1250H M45 30 110 90 95 140 60 12 90 31 153 45 102 6 49 30 500 110
SUC1450H M52 35 120 95 100 150 70 12 100 31 158 50 102 6 56 30 570 120
SUC1700H M56 35 135 110 105 165 75 16 110 38 165 55 102 8 63 30 620 125
SUC2000H M64 40 150 125 125 190 80 16 116 40 168 58 102 8 70 40 700 130
SUC2250H M64 40 150 125 125 190 80 16 120 43 195 60 127 8 70 40 700 130
SUC2500H M64 40 170 125 125 190 80 16 125 50 202 65 127 10 70 50 700 130
SUC3000H M76 50 190 145 135 210 95 19 140 55 207 70 102 10 84 50 800 155
