π - Type

• Features:

1. Low reaction force, less surface pressure, reasonable energy absorption.
2. The simple figure is easy to be installed and maintained.
3. Little influence by shipping and dock, use is widely.
4. Good adaptability for fransversal and longitudinal shape during berthing.
5. It can be used widely as the hanged. Equipment of defending Dash for all kind of the shipping and dock.

• Specification

	TYPE  H600 H800 H1000 H1250 a 1500 1500 1500 1500 b 700 700 700 700 c 1000 1000 1000 1000 d 700 700 700 700 e 150 150 150 150 f 150 150 150 150
	TYPE H600 H800 H1000 H1250 a 2000 2000 2000 2000 b 650 650 650 650 b1 550 550 550 550 c 1500 1500 1500 1500 d 600 600 600 600 e 150 150 150 150 f 150 150 150 150

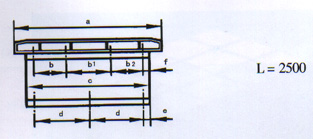

	TYPE H600 H800 H1000 H1250 a 2500 2500 2500 2500 b 550 550 550 550 b1 600 600 600 600 b2 550 550 550 550 c 2000 2000 2000 2000 d 850 850 850 850 e 150 150 150 150 f 150 150 150 150

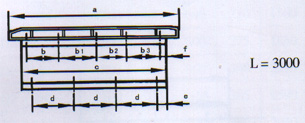

	TYPE H600 H800 H1000 H1250 a 3000 3000 3000 3000 b 550 550 550 550 b1 600 600 600 600 b2 500 500 500 500 b3 550 550 550 550 c 2500 2500 2500 2500 d 700 700 700 700 e 200 200 200 200 f 150 150 150 150

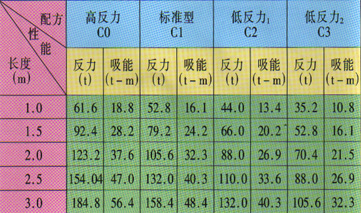

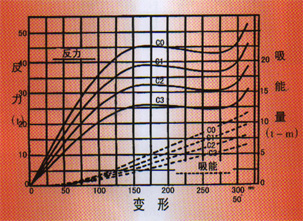

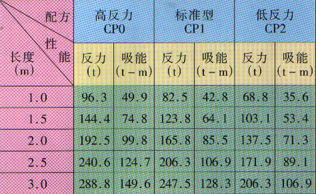

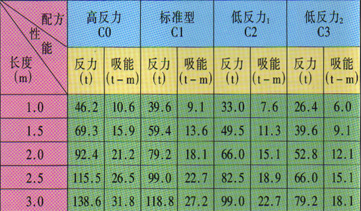

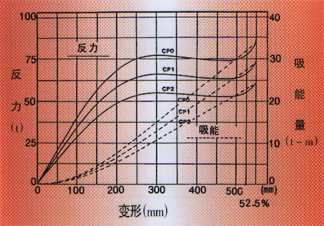

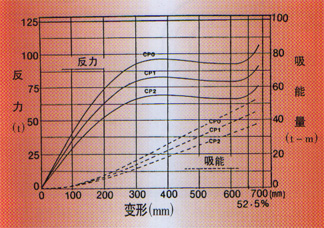

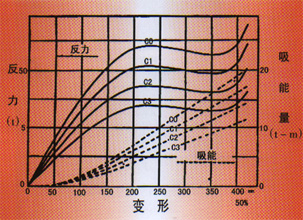

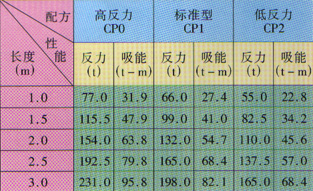

• Performance

π - 600H * 1000L
π - 800H * 1000L
π - 1000H * 1000L
	Compressive Deflection 52.5% Tolerance +/-10%
π - 1250H * 1000L

• Setup

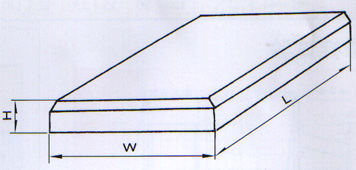

Prevent Strike board（Steel Structure）

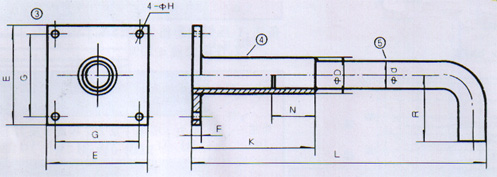

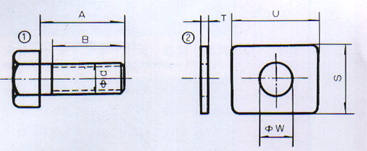

• Beforehand Accessory

NO  Accessory Material Note 1 Fastness bolt Soft steel galvanization 2 Gasket Soft steel galvanization 3 Square flange Soft steel galvanization 4 Beforehand sleeve Soft steel —— 5 Beforehand hook Soft steel ——

FENDER TYPE BOLT TYPE Fastness Bolt Beforehand Accessory Piece d A B D E F G H K L N R S U T W π-600H π-800H G-38 38.1 (W1 1/2) 100 80 48 120 9 100 6 140 290 50 80 75 100 6 41 π-1000H π-1250H G-44 44.5 (W1 3/4) 120 90 55 130 12 110 6 150 340 60 90 90 150 9 48

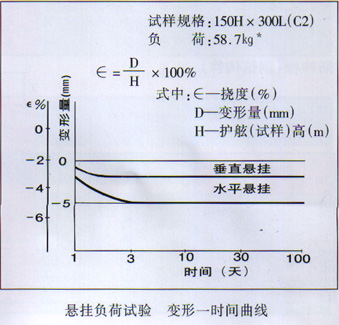

• Test of hanging
