Amend D Type


Date:2013/3/11 Editor: FRESH MARINE SUPPLY

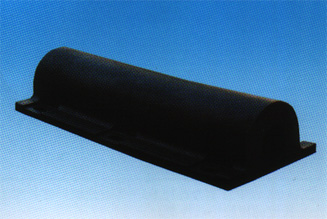

Amend D Type Rubber Fenders
  • Features:
  1. Low reaction force, less surface pressure, reasonable energy absorption.
  2. Width of bottom is very small,specially using in framing port.
  3. Reasonable structure and prolonged useful life.

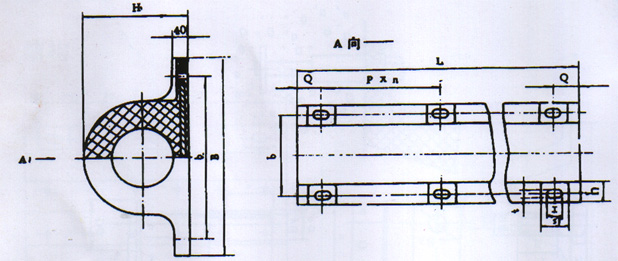

  • Specification



TYPE H B b L Q P S h T t n
GD280Hx1000L 280 540 430 1000 150 700 165 120 82 41 1
GD280Hx1500L 280 540 430 1500 150 600 165 120 82 41 2
GD280Hx2000L 280 540 430 2000 145 570 165 120 82 41 3
GD280Hx2500L 280 540 430 1500 150 550 165 120 82 41 4
GD280Hx3000L 280 540 430 3000 150 540 165 120 82 41 5
GD300Hx1000L 300 600 490 1000 150 700 165 120 90 45 1
GD300Hx1500L 300 600 490 1500 150 600 165 120 90 45 2
GD300Hx2000L 300 600 490 2000 145 570 165 120 90 45 3
GD300Hx2500L 300 600 490 2500 150 550 165 120 90 45 4
5GD300Hx3000L 300 600 490 3000 150 540 165 120 90 45 5
Note:Other Specification and Performance can be discussed with customers.

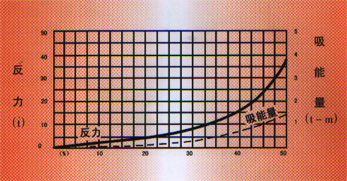

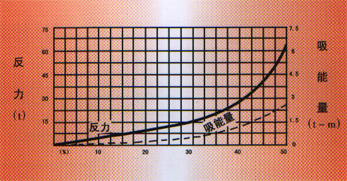

  • Performance

GD300H * 1500L



GD280H * 1000L



TYPE Design compressive deflection% Specification
Reaction Force(t) Absorption Energy(t-m) Tolerance%
GD280HXx1000L 50 37.5 1.4 +/-10
GD280Hx1500L 56.5 2.1
GD280Hx2000L 75 2.8
GD280Hx2500L 94 3.5
GD280Hx3000L 113 4.2
GD300Hx1000L 45 1.8
GD300Hx1500L 67.5 2.7
GD300Hx2000L 90 3.6
GD300Hx2500L 112.5 4.5
GD300Hx3000L 135 5.4

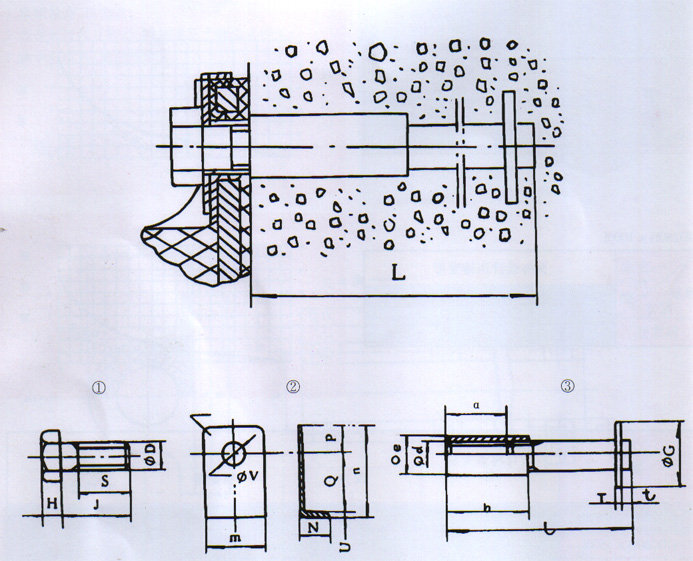

  • Setup



TYPE Bolt Piece Beforehand nut
D J S H m n N U V Q P R d e a b L T t G
GD280H M36 95

80

23

119 126 22 6 43 58 62 25 M36 50 85 125 360 9 10 85
GD300H M39 110 90 26 119 126 22 6 46 58 62 25 M39 55 85 125 390 9 10 110
