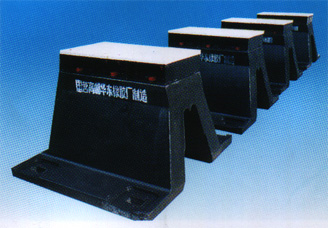

DA - B Super Arch Rubber Fenders |
1.Due to thicken the bottom of the fender, firmly installed, the life of usage is extended.

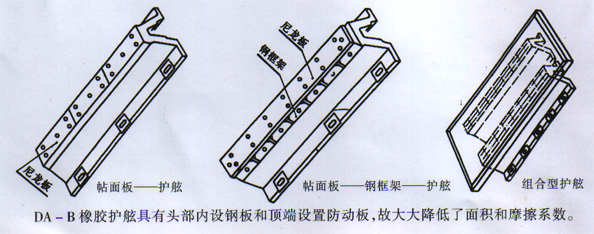

2.It can be equipped on the lateral and the bottom.
3.The quantity and measurement of installation holes can be adjusted according to the customers’ request.
4.The length can be adjusted according to the customers’ request.
|
|
|
|
|
| TYPE |
High Reaction Force |
Standard Reaction Force |
Tolerance% |
| 47.5% |
47.5% |
| R(1) |
E(t-m) |
R(t) |
E(t-m) |
| DA-B300Hx1500 |
25 |
2.8 |
20 |
2.4 |
+/-10% |
| DA-B400H |
33 |
5.1 |
26.5 |
4.2 |
| DA-B500H |
41 |
7.8 |
34 |
6.5 |
| DA-B600H |
50 |
11 |
40.5 |
9 |
| DA-B800H |
66 |
19 |
55 |
16 |
| DA-B1000H |
82 |
30 |
68 |
24.5 |
| Note：As above there are different types of DA-B fender，which’s length is 1M. Use it multiplies length of fender which you choose,there is specification that you demend. | |
|
|
|

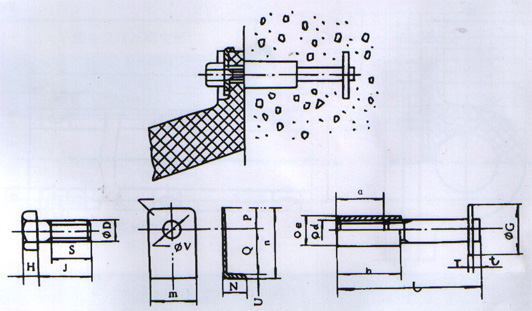

TYPE |
D |
J |
S |
a |
b |
e |
T |
L |
m |
N |
n |
p |
Q |
U |
V |
H |
d |
G |
t |
| DB300H |
M30 |
85 |
70 |
85 |
120 |
42 |
9 |
300 |
100 |
19 |
109.5 |
47 |
58 |
4.5 |
37 |
19 |
30 |
80 |
10 |
| DB400H |
M36 |
95 |
80 |
85 |
125 |
50 |
9 |
360 |
119 |
22 |
126 |
52 |
68 |
6 |
43 |
23 |
36 |
85 |
10 |
| DB500H |
M42 |
110 |
90 |
95 |
140 |
60 |
12 |
420 |
127 |
15 |
145 |
56 |
83 |
6 |
49 |
26 |
42 |
110 |
12 |
| DB600H |
M48 |
110 |
100 |
95 |
145 |
65 |
12 |
480 |
139 |
28 |
165 |
61 |
98 |
6 |
52 |
30 |
48 |
115 |
12 |
| DB800H |
M64 |
150 |
120 |
125 |
190 |
80 |
16 |
640 |
195 |
32 |
266 |
124 |
134 |
8 |
70 |
40 |
64 |
130 |
16 |
| DB1000H |
M64 |
150 |
120 |
125 |
190 |
80 |
16 |
640 |
215 |
36 |
306 |
134 |
164 |
8 |
70 |
40 |
64 |
130 |
16 |
| Different length of fender needs quantity of bolt as follows: |
| Length Of Fender（m） |
1.0 |
1.5 |
2.0 |
2.5 |
3.0 |
3.5 |
| Quantity Of Bolt(pc) |
4 |
6 |
8 |
8 |
10 |
12 | |
|
DA -B Super Arch Type
