DA Super Arch Type
Date:2013/3/11 Editor: FRESH MARINE SUPPLY |
DA Super Arch Rubber Fenders |
- Easy to be installed and maintained.
- The simple figure is easy to be installed and maintained.
- Good adaptability for fransversal and longitudinal shape during berthing.
|
|
![](../images/rubber fenders/e3.jpg) |

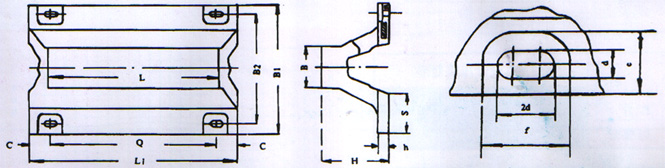

TYPE |
Specification |
H |
L |
L1 |
B |
B1 |
B2 |
c |
d |
e |
f |
h |
Q |
S |
DA-A300Hx1.0m+1.15m |
300 |
1000 |
1150 |
225 |
600 |
490 |
140 |
35 |
105 |
140 |
33 |
870 |
195 |
DA-A300Hx1.5m+1.65m |
300 |
1500 |
1650 |
225 |
600 |
490 |
140 |
35 |
105 |
140 |
33 |
685 |
195 |
DA-A300Hx2.0m+2.15m |
300 |
2000 |
2150 |
225 |
600 |
490 |
140 |
35 |
105 |
140 |
33 |
625 |
195 |
DA-A300Hx3.0m+3.15m |
300 |
3000 |
3150 |
225 |
600 |
490 |
140 |
35 |
105 |
140 |
33 |
715 |
195 |
DA-A400Hx1.0m+1.2m |
400 |
1000 |
1200 |
300 |
800 |
670 |
150 |
41 |
120 |
165 |
40 |
900 |
260 |
DA-A400Hx1.5m+1.7m |
400 |
1500 |
1700 |
300 |
800 |
670 |
150 |
41 |
120 |
165 |
40 |
700 |
260 |
DA-A400Hx2.0m+2.2m |
400 |
2000 |
2200 |
300 |
800 |
670 |
150 |
41 |
120 |
165 |
40 |
635 |
260 |
DA-A400Hx3.0m+3.2m |
400 |
3000 |
3200 |
300 |
800 |
670 |
150 |
41 |
120 |
165 |
40 |
725 |
260 |
DA-A500Hx1.0m+1.25m |
500 |
1000 |
1250 |
375 |
1000 |
840 |
160 |
47 |
140 |
180 |
45 |
930 |
325 |
DA-A500Hx1.5m+1.75m |
500 |
1500 |
1750 |
375 |
1000 |
840 |
160 |
47 |
140 |
180 |
45 |
715 |
325 |
DA-A500Hx2.0m+2.25m |
500 |
2000 |
2250 |
375 |
1000 |
840 |
160 |
47 |
140 |
180 |
45 |
645 |
325 |
DA-A500Hx3.0m+3.25 |
500 |
3000 |
3250 |
375 |
1000 |
840 |
160 |
47 |
140 |
180 |
45 |
730 |
325 |
DA-A600Hx1.0m+1.3m |
600 |
1000 |
1300 |
450 |
1200 |
1010 |
170 |
50 |
160 |
195 |
54 |
960 |
390 |
DA-A600Hx1.5m+1.8m |
600 |
1500 |
1800 |
450 |
1200 |
1010 |
170 |
50 |
160 |
195 |
54 |
730 |
390 |
DA-A600Hx2.0m+2.3m |
600 |
2000 |
2300 |
450 |
1200 |
1010 |
170 |
50 |
160 |
195 |
54 |
655 |
390 |
DA-A600Hx3.0m+3.3m |
600 |
3000 |
3300 |
450 |
1200 |
1010 |
170 |
50 |
160 |
195 |
54 |
740 |
390 |
DA-A800Hx1.0m+1.4m |
800 |
1000 |
1400 |
600 |
1600 |
1340 |
180 |
68 |
260 |
270 |
72 |
1040 |
520 |
DA-A800Hx1.5m+1.9m |
800 |
51500 |
1900 |
600 |
1600 |
1340 |
180 |
68 |
260 |
270 |
72 |
770 |
520 |
DA-A800Hx2.0m+2.4m |
800 |
2000 |
2400 |
600 |
1600 |
1340 |
180 |
68 |
260 |
270 |
72 |
680 |
520 |
DA-A1000Hx1.0m+1.5m |
1000 |
1000 |
1500 |
750 |
2000 |
1680 |
200 |
68 |
300 |
290 |
90 |
1100 |
650 |
DA-A1000Hx1.5m+2.0m |
1000 |
1500 |
2000 |
750 |
2000 |
1680 |
200 |
68 |
300 |
290 |
90 |
800 |
650 |
DA-A1000Hx2.0m+2.5m |
1000 |
2000 |
2500 |
750 |
2000 |
1680 |
200 |
68 |
300 |
290 |
90 |
700 |
650 |
|
|

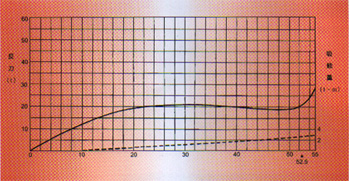

DA - A300H * 1.5m + 1.15m
![](../images/rubber fenders/e4.jpg)
|
![](../images/rubber fenders/e5.jpg) |
|
|

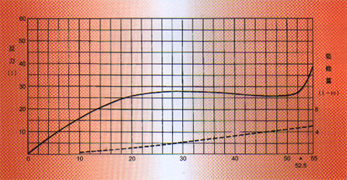

DA - A300H * 1.0m + 1.2m
![](../images/rubber fenders/e6.jpg)
|
![](../images/rubber fenders/e7.jpg) |
|
|

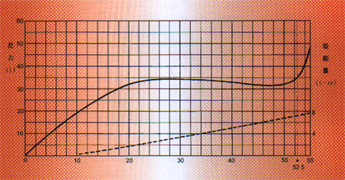

DA - A500H * 1.0m + 1.25m
![](../images/rubber fenders/e8.jpg)
|
![](../images/rubber fenders/e9.jpg) |
|
|

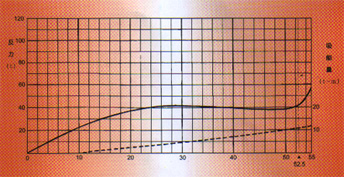

DA - A600H * 1.0m + 1.3m
![](../images/rubber fenders/e10.jpg)
|
![](../images/rubber fenders/e11.jpg) |
|
|
![](../images/rubber fenders/e12.jpg) |
![](../images/rubber fenders/e13.jpg) |
TYPE |
High Reaction Force |
Standard Reaction Force |
52.5% |
55% |
52.5% |
55% |
Reaction Force(T) |
Energy Absorption(T-M) |
Reaction Force(T) |
Energy Absorption(T-M) |
Reaction Force(T) |
Energy Absorption(T-M) |
Reaction Force(T) |
Energy Absorption(T-M) |
DA-A300Hx1.0m+1.15m |
24.9 |
3.1 |
34.6 |
3.3 |
20.6 |
2.6 |
28.6 |
2.8 |
DA-A300Hx1.5m+1.65m |
37.4 |
4.7 |
51.9 |
5.0 |
30.9 |
3.9 |
42.9 |
4.2 |
DA-A300Hx2.0m+2.15m |
49.8 |
5.2 |
69.2 |
6.6 |
41.2 |
5.2 |
57.2 |
5.6 |
DA-A300Hx3.0m+3.15m |
74.7 |
9.3 |
103.8 |
9.9 |
61.8 |
7.8 |
85.5 |
8.4 |
DA-A400Hx1.0m+1.2m |
33.2 |
5.6 |
46.1 |
6.0 |
27.5 |
4.6 |
38.2 |
4.9 |
DA-A400Hx1.5m+1.7m |
49.8 |
8.4 |
69.2 |
9.0 |
41.3 |
6.9 |
57.3 |
7.4 |
DA-A400Hx2.0m+2.2m |
66.4 |
11.2 |
92.2 |
12.0 |
55.0 |
9.2 |
76.4 |
9.8 |
DA-A400Hx3.0m+3.2m |
99.6 |
16.8 |
138.3 |
18.0 |
82.5 |
13.8 |
114.6 |
14.7 |
DA-A500Hx1.0m+1.25m |
41.5 |
8.7 |
57.6 |
9.3 |
34.3 |
7.2 |
47.8 |
7.7 |
DA-A500Hx1.5m+1.75m |
62.3 |
13.1 |
96.4 |
14.0 |
51.6 |
10.8 |
71.7 |
11.6 |
DA-A500Hx2.0m+2.25m |
83.0 |
17.4 |
115.2 |
18.6 |
68.8 |
14.4 |
95.6 |
15.4 |
DA-A500Hx3.0m+3.25m |
124.5 |
26.1 |
172.8 |
27.9 |
103.2 |
21.6 |
143.4 |
23.1 |
DA-A600Hx1.0m+1.3m |
49.8 |
12.6 |
69.2 |
13.5 |
41.2 |
10.4 |
57.2 |
11.1 |
DA-A600Hx1.5m+1.8m |
74.7 |
18.9 |
103.8 |
20.3 |
61.8 |
15.6 |
85.8 |
16.7 |
DA-A600Hx2.0m+2.3m |
99.6 |
25.2 |
138.4 |
27 |
82.4 |
20.8 |
114.4 |
22.2 |
DA-A600Hx3.0m+3.3m |
149.4 |
37.8 |
207.6 |
40.5 |
123.6 |
31.2 |
171.6 |
33.3 |
DA-A800Hx1.0m+1.4m |
66.4 |
22.3 |
92.2 |
23.9 |
55.0 |
18.5 |
76.4 |
19.8 |
DA-A800Hx1.5m+1.9m |
99.6 |
33.5 |
138.3 |
35.9 |
82.5 |
27.8 |
114.6 |
29.7 |
DA-A800Hx2.0m+2.4m |
132.8 |
44.6 |
184.4 |
47.8 |
110.0 |
37.0 |
152.8 |
39.6 |
DA-A1000Hx1.0m+1.5m |
83.0 |
34.9 |
115.3 |
37.4 |
68.8 |
28.9 |
95.6 |
31.0 |
DA-A1000Hx1.5m+2.0m |
124.5 |
52.4 |
173.0 |
56.1 |
103.2 |
43.4 |
143.4 |
46.5 |
DA-A1000Hx2.0m+2.5m |
166.0 |
69.8 |
230.6 |
74.8 |
137.6 |
57.6 |
191.2 |
62.0 | |
|
|
