SC Super Cell Current position：Home > Product > SC Super Cell

SC Super Cell

Date：2013/3/11 Editor: FRESH MARINE SUPPLY
SC Super Cell Rubber Fenders
  • Features:
  1. Reasonable structure, high performance and good durability .
  2. With angular, and little influence of anchoring.
  3. usually suitable for large and middle oil, coal, ore docks.
  • Specification



UNIT: mm
 型号

TYPES

 尺寸 SIZE
H D1 D2 孔数（n）

Holes

 d h
SC400 400 550 650 4 Ø30 25
SC500 500 550 650 4 Ø32 25
SC630 630 700 840 4 Ø39 30
SC800 800 900 1050 6 Ø40 40

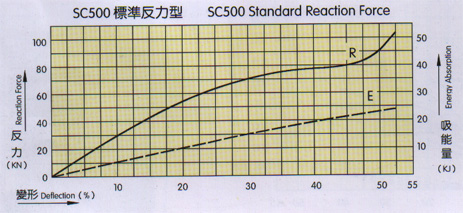

  • Performance
型号

TYPES

 性能 Performance
设计压缩变形52.5% Compression Deflection Rate 52.5% 性能公差% Tolerance %
超高反力型RS

Super high Reaction Force RS

 高反力型RH

Super high Reaction Force RH

 标准反力型RO

Standard Reaction Force RO

 　

低反力型RL

Low Reaction Force RL

　

反力R(KN) 吸能量E(KJ) 反力R(KN) 吸能量E（KJ） 反力R(KN) 吸能量E(KJ) 反力R(KN) 吸能量E(KJ)
SC400 96 16.7 83.4 14.4 63.7 11.1 51.0 8.8 +/-10
SC500 162 35.6 140.0 30.1 108.0 23.4 86.3 17.8
SC630 258 71.6 224.0 61.7 172.0 47.1 137.3 38.2
SC800 412 145.2 355.0 124.6 275.0 96.1 211.0 74.5
Note: R-Reaction E-Energy Absorption
