Semi - Circular

Date：2013/3/10 Editor: FRESH MARINE SUPPLY
Semi - Circular ( Type D ) Rubber Fenders
  • Features:
  1. Due to thicken the bottom of the fender, firmly installed, the life of usage is extended.
  2. It can be equipped on the lateral and the bottom.
  3. The quantity and measurement of installation holes can be adjusted according to the customers’ request.
  4. The length can be adjusted according to the customers’ request.
  • Specification And Performance
规格

Specification

 性能Performance(L=1000) 性能公差%

Tolerance%

 注

Note

设计压缩变形

Design compressive deflection%

 反力(KN)

Reaction Force

(KN)

 吸能量(KJ)

Absorption Energy

(KJ)

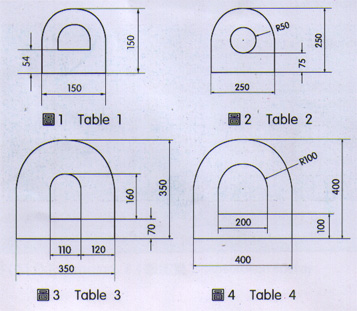

D150x150xL1000 50 140.2 3.5 +/-10 图1 Table1
D250x250xL3000 356 10.7 图2  Table2
D350x350xL1000-2000 329 18.7 图3  Table3
D400x400xL2000 372.7 24.7 图4  Table4
